Use sprites in a 3d bevy scene.

Overview

bevy_sprite3d

Crates.io MIT

Use 2d sprites in a 3d bevy scene.

This is a pretty common setup in other engines (unity, godot, etc). Useful for:

  • 2d games using bevy's lighting (orthographic camera, 3d sprites)
  • 2d games with easier parallax and scale (perspective camera, 3d sprites)
  • 2d games in a 3d world (perspective camera, both 3d sprites and meshes)
  • 3d games with billboard sprites (a la Delver)

Both meshes and materials are internally cached, so this crate can be used for things like tilemaps without issue.

Examples

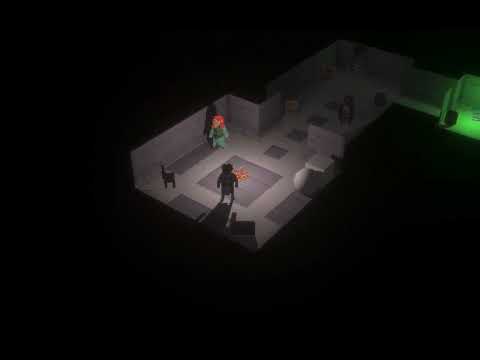

Example using bevy_sprite3d:

chaos

A more complicated scene: examples/dungeon.rs. Try this one with cargo run --example dungeon.

Some more examples. These don't use bevy, but demonstrate the effect style:

the last night

the last night

hollow knight

Usage

Check out the examples for details. Tl;dr initialize the plugin with

app.add_plugin(Sprite3dPlugin)

and spawn sprites with

fn setup(
    mut commands: Commands,
    images: Res<ImageAssets>,
    mut sprite_params: Sprite3dParams
) {

    // ----------------------- Single Static Sprite ----------------------------

    commands.spawn_bundle(Sprite3d {
            image: images.sprite.clone(),

            pixels_per_metre: 400.,

            partial_alpha: true,

            unlit: true,

            ..default()

            // transform: Transform::from_xyz(0., 0., 0.),
            // pivot: Some(Vec2::new(0.5, 0.5)),
            // double_sided: true,

    }.bundle(&mut sprite_params));

    // ------------------- Texture Atlas (Sprite Sheet) ------------------------

    commands.spawn_bundle(AtlasSprite3d {
            atlas: images.sprite_sheet.clone(),

            pixels_per_metre: 32.,
            partial_alpha: true,
            unlit: true,

            index: 3,

            ..default()

            // transform: Transform::from_xyz(0., 0., 0.),
            // pivot: Some(Vec2::new(0.5, 0.5)),
            // double_sided: true,

    }.bundle(&mut sprite_params));
}

One small complication: your image assets should be loaded prior to spawning, as bevy_sprite3d uses some properties of the image (such as size and aspect ratio) in constructing the 3d mesh.

To that end, I'd recommend using bevy_asset_loader for simplicity. Examples are provided both with and without it.

Versioning

bevy_sprite3d version bevy version
2.4 0.10
2.3 0.9
2.2 0.9
2.1 0.9
2.0 0.8
1.1 0.8
1.0 0.7
You might also like...
Bevy Simple Portals is a Bevy game engine plugin aimed to create portals.
Bevy Simple Portals is a Bevy game engine plugin aimed to create portals.

Portals for Bevy Bevy Simple Portals is a Bevy game engine plugin aimed to create portals. Those portals are (for now) purely visual and can be used t

Minecraft using Bevy and Bevy-Meshem

minecraft_bevy Minecraft_bevy was built to showcase bevy_meshem. After a week of developing it has: Chunk loading / unloading each chunk's mesh is bei

A Bevy plugin to use Kira for game audio

Bevy Kira audio This bevy plugin is intended to try integrating Kira into Bevy. The end goal would be to replace or update bevy_audio, if Kira turns o

A place to start when building webgl apps in Bevy. Use this to avoid writing the boilerplate.

Template Bevy project with WebGL enabled Prerequisites cargo install cargo-make Build and serve WASM version Set your local ip address in Makefile.to

Bevy plugin for an AssetServer that can load embedded resources, or use other AssetServers based on the path.

Bevy-Embasset Embed your asset folder inside your binary. bevy-embasset adds support for loading assets embedded into the binary. Furthermore, it can

A plugin to use the kajiya renderer with bevy

🕊️ 💡 bevy-kajiya A plugin that enables use of the kajiya renderer in bevy WARNING: This plugin is barebones and supports a limited set of features.

A simple example showcasing how to use Bevy to display a square with acceleration (controllable with your keyboard) that wraps around the screen!
A simple example showcasing how to use Bevy to display a square with acceleration (controllable with your keyboard) that wraps around the screen!

Bevy Wrapping Square example A simple example showcasing how to use Bevy to display a square with acceleration (controllable with your keyboard) that

An opinionated 2D sparse grid made for use with Bevy. For storing and querying entities

bevy_sparse_grid_2d An opinionated 2D sparse grid made for use with Bevy. For storing and querying entities. Personally, I'm using it for simple stupi

A simple-to-use input manager for the Bevy game engine that empowers players and makes accessibility easy.

Bevy Ineffable A simple-to-use input manager for the Bevy game engine that empowers players and makes accessibility easy. Core tenets Make accessibili

Comments
  • panicked at 'called `Option::unwrap()` on a `None` value'

    panicked at 'called `Option::unwrap()` on a `None` value'

    What's the Error? when attempting to spawn a sprite3d and upon calling bundle this line of code panics: let image_size = params.images.get(&self.image).unwrap().texture_descriptor.size; however bevy is able to load the image just fine. here's my full code.


    use bevy::prelude::*;
    use bevy_inspector_egui::quick::WorldInspectorPlugin;
    use bevy_sprite3d::Sprite3d;
    use bevy_sprite3d::*;
    use std::sync::Mutex;
    use kira::{
    	manager::{
    		AudioManager, AudioManagerSettings,
    		backend::cpal::CpalBackend,
    	},
    	sound::streaming::{StreamingSoundData, StreamingSoundSettings},
    };
    #[derive(Resource)]
    struct Epic
    {
        manager: Mutex<AudioManager>
    }

    fn main() {
        let mut manager = Epic { manager: AudioManager::<CpalBackend>::new(AudioManagerSettings::default()).unwrap().into()};
        App::new()
            .insert_resource(manager)
            .add_plugins(DefaultPlugins)
            .add_plugin(Sprite3dPlugin)
            .add_plugin(WorldInspectorPlugin::new())
            .add_startup_system(setup)
            .run();
    }

    fn setup(mut manager: ResMut<Epic>, mut commands: Commands,  asset_server: Res<AssetServer>,  mut sprite_params : Sprite3dParams)
    {
        println!("do something");

        let sound_data = StreamingSoundData::from_file("assets/audio/isle.mp3", StreamingSoundSettings::default()).unwrap();

        manager.manager.lock().unwrap().play(sound_data).unwrap();
        commands.spawn(Camera3dBundle {
            transform: Transform::from_xyz(0.0, 0.0, 0.0),
            ..default()
        });
        let image = asset_server.load("bf.png");

        commands.spawn(Sprite3d
        {
            image: image,
            unlit: true,
            ..default()
        }.bundle(&mut sprite_params));
    }

    opened by rayanmargham 2
  • Weird behaviour under a 3d camera

    Weird behaviour under a 3d camera

    https://user-images.githubusercontent.com/22399952/225992560-c1927420-4f9d-4948-b9cd-c742c50b0211.mov

    Setup: bevy 0.10 + bevy_sprite3d Issue: A part of character sprite disappears at some positions

    The character and all tiles are individual 3d sprites. The tiles are rotated PI/2 along x axis to make a flat floor. (as shown in the video, the floor is indeed flat)

    The character moves along x/z and after passing half of the tile, the lower part of the character disappears. This happens for every single tile.

    Other than this issue, everything else works fine, including lighting and shadows.

    opened by Hakukano 2
  • How to step index forward?

    How to step index forward?

    it seems to be turned into a PbrBundle so i cant figure out how to access the index. Id like to achieve something like https://bevyengine.org/examples/2d/sprite-sheet/

    enhancement
    opened by mrshmllow 2
  • Alpha-channel shadow support

    Alpha-channel shadow support

    There's an open bevy issue for this at https://github.com/bevyengine/bevy/issues/4372, seems like the most straight-forward path would be to go in and resolve this in the engine. Barring that, there are a few more patch-style fixes we could try:

    • Manually creating a far simpler interim shader for sprites, possibly at the cost of PBR
    • Analytically modifying mesh shape to fit the contours of a non-transparent sprite
      • This might have some side-benefits in collision, mouse picking, etc.

    Will look into this more later.

    opened by FraserLee 1
