Overview

DeepRender

An experimental Neural Network trainer/visualizer in Rust

Try it on your browser! https://msakuta.github.io/DeepRender/

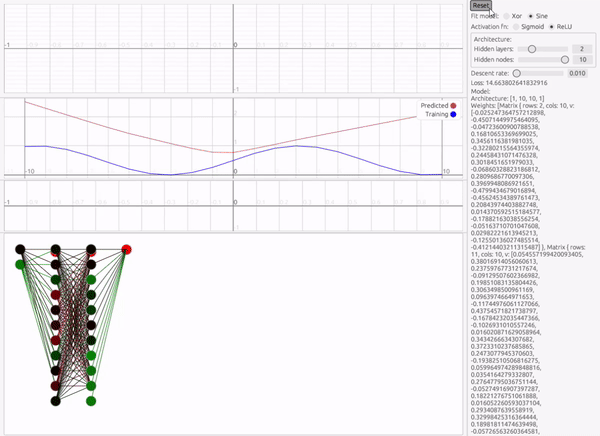

Training on a function

A neural network is a universal function approximator. Therefore, you can fit it to any function, including sine wave, given enough neurons.

Training process:

An example of training on an image

You can train the network to imitate an image!

An example of training 3D renderer

Training process:

Training process

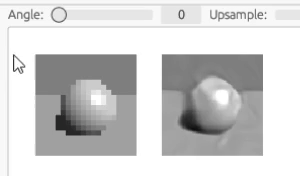

Result:

Result

What's this?

This project attempts to implement a neural network trainer and visualizer with a GUI using eframe/egui without using any of the deep learning libraries. Even the matrix operations are implemented from scratch. As such, this project is not expected to work efficiently.

There are 4 models to train:

  • XOR logical gate
  • sinusoidal function
  • Synthetic image (2D function field)
  • An image
  • A 3D scene rendered with ray tracing renderer (ray-rust)

You can switch the model, activation functions, the network architecture and the descent rate in real time.

See this document for more details about the theoretical background.

This project is inspired by this video series, where deep learning framework is implemented in plain C (if you can do it in C, why not in Rust?): https://youtu.be/PGSba51aRYU

How to build

Install Rust.

cargo r

How to build Wasm version

You can build the application to WebAssembly and run on the browser.

  • Install wasm-pack
  • Install trunk by cargo install trunk
  • Run trunk serve for development server, or
  • Run trunk build --release for release build in eframe/dist

Note that you cannot use File Image as the fit model with Wasm build. Please use local build if you want that feature (it is faster to train on local build anyway).

You might also like...
n2 is a library implementation of a feedforward, backpropagation artificial neural network.

n2 is a library implementation of a feedforward, backpropagation artificial neural network. Usage Add the following to the [dependencies] section o

Søren Mortensen 0 Feb 21, 2021
A light wheight Neural Network library with a focus on ease of use and speed.

Smarty Pants This goal of this library is to: Produce NeuralNetworks that will always give the same result when given the same input. Provide methods

Coding Wizard 3 Mar 7, 2022
A neural network model that can approximate any non-linear function by using the random search algorithm for the optimization of the loss function.

random_search A neural network model that can approximate any non-linear function by using the random search algorithm for the optimization of the los

ph04 2 Apr 1, 2022
Build neural network models in Cairo 1.0

Explore ML in Cairo 1.0 Build neural network models in Cairo 1.0 to perform inference. The calculations are performed using i33 values, and the outcom

null 17 Mar 27, 2023
The CBNF neural network header format.

cbnf The CBNF neural network header format. What is CBNF? CBNF is a neural network header format for use with efficiently updatable neural networks fo

Cosmo Bobak 2 Jul 11, 2023
GBS/LSDj visualizer based on SameBoy and FFmpeg
GBS/LSDj visualizer based on SameBoy and FFmpeg

GBPresenter GBPresenter is a tool I wrote to generate visualizations of GameBoy chiptunes, based on SameBoy, FFmpeg, and Slint. The visualization desi

Noah Sweilem 30 Jun 24, 2023
Neural networks in Rust

deeplearn-rs Deep learning in Rust! This is my first shot at this. It's mostly just a proof of concept right now. The API will change. Status We have

Theodore DeRego 199 Oct 23, 2022
Rust implementation of real-coded GA for solving optimization problems and training of neural networks
Rust implementation of real-coded GA for solving optimization problems and training of neural networks

revonet Rust implementation of real-coded genetic algorithm for solving optimization problems and training of neural networks. The latter is also know

Yury Tsoy 19 Aug 11, 2022
Compile-time creation of neural networks with Rust

GAMMA Compile-time creation of neural networks with Rust Description This is for now just a showcase project of what can be done with const generics i

Aitor Ruano 354 Jan 1, 2023
Comments
  • Stateful samplers

    Stateful samplers

    Sampler trait

    Now we can split the traning data into batches and render the GUI in between each of them, thanks to the sampler trait implemented as state machines.

    pub(crate) trait Sampler {
    fn sample(&mut self, train_batch: TrainBatch, batch_size: usize) -> Matrix;
    fn full(&self) -> &Matrix;
}

    MatrixSampler struct

    The MatrixSampler struct which implements this trait has internal state that can make progress every sample. It also provides with full method, which is used to evaluate global loss function (which is not necessarily evaluated every batch because evaluating the whole training set's loss can be time consuming).

    The effect of this is that the GUI won't freeze for a large training set. Previously, we run the whole training set every frame, but it can be much slower than 16ms and we won't achieve 60fps. Now you can adjust the number of batches to train per frame in the control panel.


    MatrixSampler struct

    There is another implementor of Sampler which is RaytraceSampler. This sampler does not use pre-allocated sample array. It uses truly random rays every time it samples. It can make the scene rendering smoother because it is trained in actually random samples in between pixels and angle units, unlike pre-sampled raster images.

    You can see the result:

    DeepRender3DResult6

    The reference image on the left is not very accurate anymore because the network is not trained on this pixelated image, but putting a large image here is costly in itself (because we need to evaluate the value over the whole 3D image to calculate the loss).

    opened by msakuta 0
Owner
Masahiro Sakuta
Masahiro Sakuta
